  ITEM DETAILS

Item Name: 200W load dummy 50 ohm load 200 watts N-type Male Coaxial Load N Female
USD 89.50

Item Code: 0014-0087
 Ask a question about this

 Add my watch 1


200W load dummy 50 ohm load 200 watts N-type Male Coaxial Load N Female

  Description


0014-0087

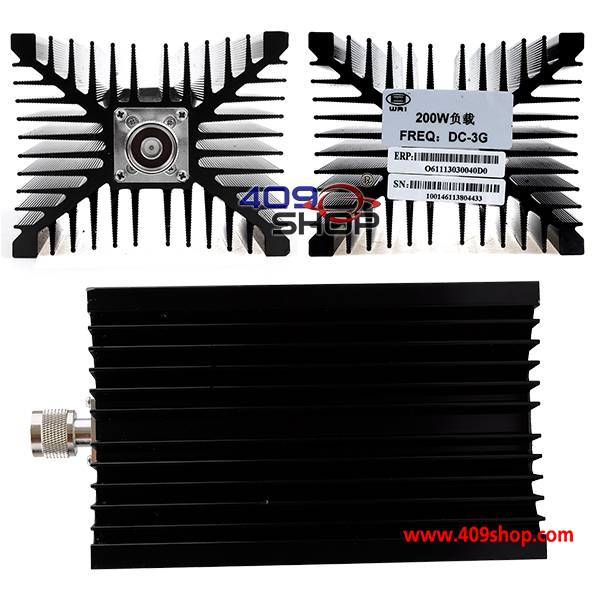

200W load dummy 50 ohm load 200 watts N-type Male Coaxial Load N Female

Specifications



Model

200W

frequency

DC~3GHz

Average Power

200W

Impedance Ω

50Ω

VSWR

1.2

Third-order intermodulation

-120dBc 2x43dBm

Ambient temperature

-40~45

Interface Type

N-J


Coaxial fixed load absorb RF & microwave power can be used as dummy loads of antenna and transmitter.
Can also be used as a multi-port microwave device such as circulator and directional coupler port matching to ensure the characteristic impedance,
accurate measurement
PREFIX = OTF series coaxial fixed termination average power 2W-300W,
frequency range DC-3GHz, wide frequency band, low VSWR, anti-pulse and
anti-burnout performance characteristics.

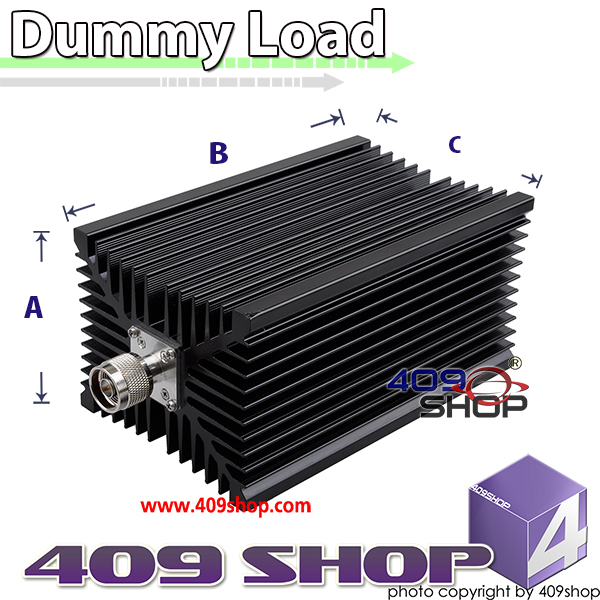

10cm(A) x17cm(B) x 9cm(C)











Photo will have chromatic aberration compared with the product

PACKAGE CONTAIN
  • 1 x 200W load dummy 50 ohm load 200 watts N-type Male Coaxial Load N Female
